The Duralloy solid colour range is a collection of popular solid colours including Colorbond® colours, delivered with warranty grade advanced durable polyester thermosetting powder.
It is ideal for use:
Duralloy is only suitable for coastal environments >100m from the high tide line and are NOT suitable in strongly acidic or caustic environments so PH must be >5 and <9.

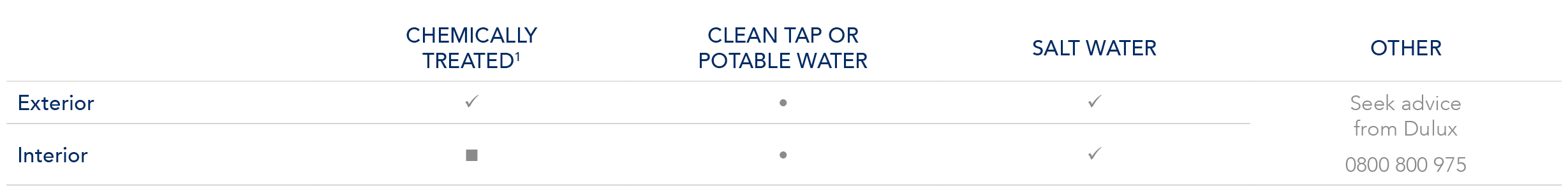

Please refer to the ‘Interior and exterior environments close to liquids other than the sea’ section for warranty implications for in such environments.
Selected Duralloy colours are available with RapidCure™ Technology enabling reductions in energy consumption during curing and or increased process line speeds. For more information on RapidCure Technology see here.
* Only Dulux Accredited Powder Coaters are able to issue our Dulux Alumi Shield and Steel Shield warranties after demonstrating their capability to meet stringent quality conditions and international standards.

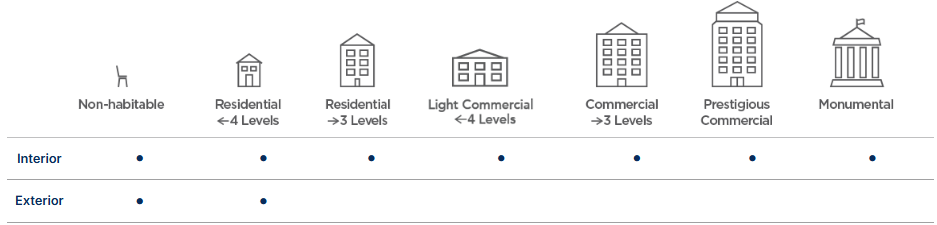

Developed primarily for use on extruded aluminium, including window and door joinery, and extruded aluminium panel work on class 1 & 10 residential buildings under the Australian Building Code. Duralloy is also suitable for use over a variety of substrates, including mild steel and aluminium.
Ideal for warranty grade application over:
Duralloy can also be used on the following but is not warranted:
Durable polyester thermosetting powder
Matt, satin and gloss finishes
Interior and exterior use
The pre-treatment process must be capable of meeting the performance outputs as described in AS3715 and AAMA-2603
Compliance to appropriate process parameters is essential in ensuring compliance to etch, conversion coating weights (time/concentration) and conductivity of the final rinse.
The etch process is a very important stage of pre-treatment and close consultation with your pre-treatment supplier is strongly recommended to ensure optimum adhesion & corrosion resistance is obtained. As an approximate guide:
This is the next pre-treatment process for aluminium to ensure that it is suitably prepared for coating. It is recommended that Chrome conversion weights shall be a minimum of 431mg/m2, but advice from pre-treatment suppliers should be taken into consideration.
Final rinse is to ensure optimum surface preparation prior to coating.
Care should be taken with handling to ensure health and safety measures are met and that the substrate is not contaminated.
Dry Off Oven (if applicable)
If your site uses a dry off oven to assist in the pre-treatment process please ensure:
Steel substrates shall be prepared as follows:
1. Wash and degrease all surfaces to be coated in accordance with AS1627.1 with a free-rinsing, alkaline detergent, in strict accordance with the manufacturer’s written instructions and all safety warnings.
2. Wash with fresh potable water and ensure that all soluble salts are removed in accordance with AS 3894.6 methods A&D.
3. Grind all sharp edges with a power tool to a minimum radius of 2mm.
4. Power tool clean welds to AS1627.2 Class 2 to remove roughness. Remove filings, preferably by vacuum or compressed air.
5. Abrasive blast clean all steel surfaces to be painted in accordance with AS1627.4 to visual standard AS1627.9 Class 2.5 (equivalent to ISO8501-1, Sa 2.5: Very Thorough Blast-Cleaning). Use a medium that will generate a surface profile of 35 to 65 microns (as tested to AS3894.5 Method A.) In situations where it is not possible to prepare your item on all surfaces as described above, for long term protection against corrosion it is strongly recommended whenever possible, that an alternative substrate such as, aluminium be considered.
6. The steel is to be stored in an area which is clean and dry
7. The steel must be coated within 4 hours of blasting.
210° : 4 mins minimum
200° : 5 mins minimum
180° : 8 mins minimum
200° : 2 mins minimum
180° : 5 mins minimum
160° : 10 mins minimum
Please note: All RapidCure products can be applied at standard temperatures, but benefits from possible reduction in energy consumption or faster line speeds will be lost.

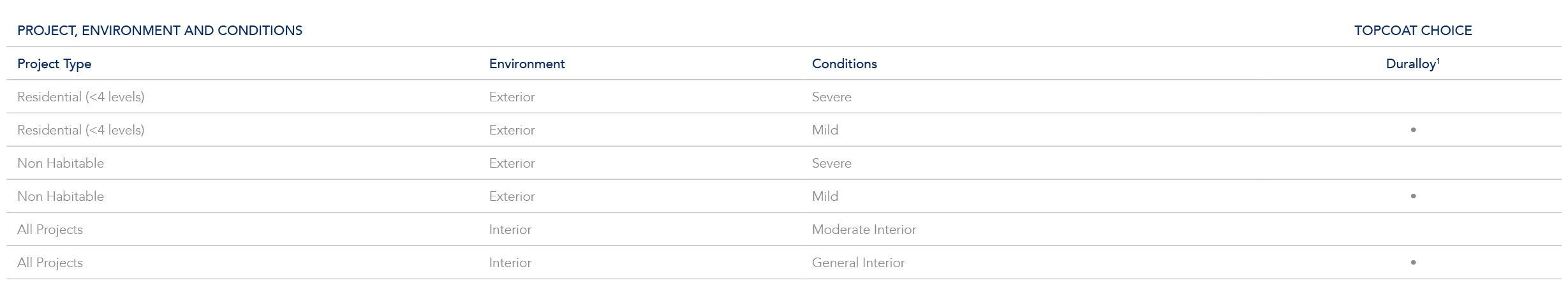

Use the following table to help identify where Duralloy can be applied on aluminium projects, the system required and the Dulux Alumi Shield™ warranty level available. Refer to the conditions information to determine the environment that your project will be exposed to.

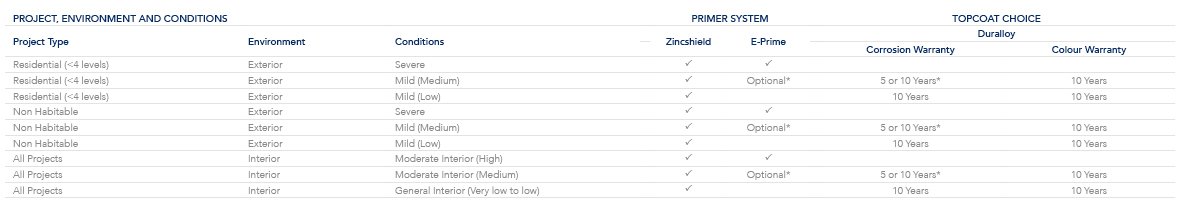

Use the following table to help identify the product choice you have to gain a Steel Shield™ warranty on your project. Refer to the conditions information to determine the environment that your project will be exposed to. Click on the table below for a larger version.
Use the following table which references AS2312.1, AS 4312 and ISO 9223 to identify the environment, conditions and atmospheric corrosivity categories
To pinpoint your projects corrosivity zone this table should be used together with the corrosivity zone maps contained within AS 4312 .
1. Geothermal environments greater than 500m of a bore, mud pool, steam vent, or other source with a pH between 5 and 9. For pH outside this consult Dulux.
2. Geothermal hot spots within 500m of a bore, mud pool, steam vent, or other source.
3. All offshore islands including Waiheke Island, Stewart Island, Fraser Island and Pacific islands eg PNG, Fiji, Samoa, Tonga, Tahiti, Noumea
4. The corrosion rates for the first year of exposure for the different corrosivity categories of Aluminium and Carbon (Mild) Steel are determined by the following standards:
AS 4312 – Atmospheric corrosivity zones in Australia.
AS 2312.1- Guide to the protection of structural steel against atmospheric corrosion by the use of protective coatings. Part 1: Paint coatings
ISO 9223 – Corrosion of metals and alloys – Corrosivity of atmospheres – Classification, determination and estimation
5. The corrosion rates for the first year of exposure for the different corrosivity categories of Aluminium are determined by the following standard:
ISO 9223- Corrosion of metals and alloys – Corrosivity of atmospheres – Classification, determination and estimation
Please refer to the guidance below for:
Our dedicated consultants can help simplify the specification process, saving you time and money by providing the right coating advice for your project.
Call 13 24 99
On pre-treated architectural aluminium when applied by a Dulux Accredited Powder Coater to the warranty specification on recommended project types and conditions.
For more information on our Dulux Alumi Shield™ warranty program click here.
On mild steel, bright/semi bright steel, black steel and blue steel as part of the Steel Shield warranty system when applied by a Dulux Accredited Powder Coater to the warranty specification on recommended project types and conditions.
For more information on our Dulux Steel Shield™ warranty program click here.
Environments must be:
Only Dulux Accredited Powder Coaters are able to issue our Dulux Alumi Shield™ and Steel Shield™ warranties after demonstrating their capability to meet stringent quality conditions and international standards.
For more information click here.
Colours displayed should be used as a guide for your colour selection.
Always confirm your colour choice with a production line prepared swatch for final colour approval.
* Only Dulux Accredited Powder Coaters are able to issue our Dulux Alumi Shield™ and Steel Shield™ warranties after demonstrating their capability to meet stringent quality conditions and international standards.
The Duralloy solid colour range is a collection of popular solid colours including COLORBOND® steel colours, delivered with warranty grade advanced durable polyester thermosetting powder.
The Duralloy solid colour range with Rapidcure is a collection of popular solid colours including COLORBOND® steel colours, delivered with warranty grade advanced durable polyester thermosetting powder. For more information on Rapidcure click here.
